NQ head assembly

NQ head assembly, NQ3 head assembly, NQ link latch head assembly, NQ double tube head assembly.

NQ head assembly is the main part of NQ core barrel. NQ head assembly is used together with NQ inner tube, NQ stop ring, NQ core lifter, NQ core lifter case. They compose the NQ inner tube assembly. When using the N size wireline drilling, we do not have to remove the entire N size drill string to get the core sample from the bottom of the hole. We just need to lift the NQ inner tube assembly. It is the great advantage compare to conventional drilling.

NQ Head Assembly

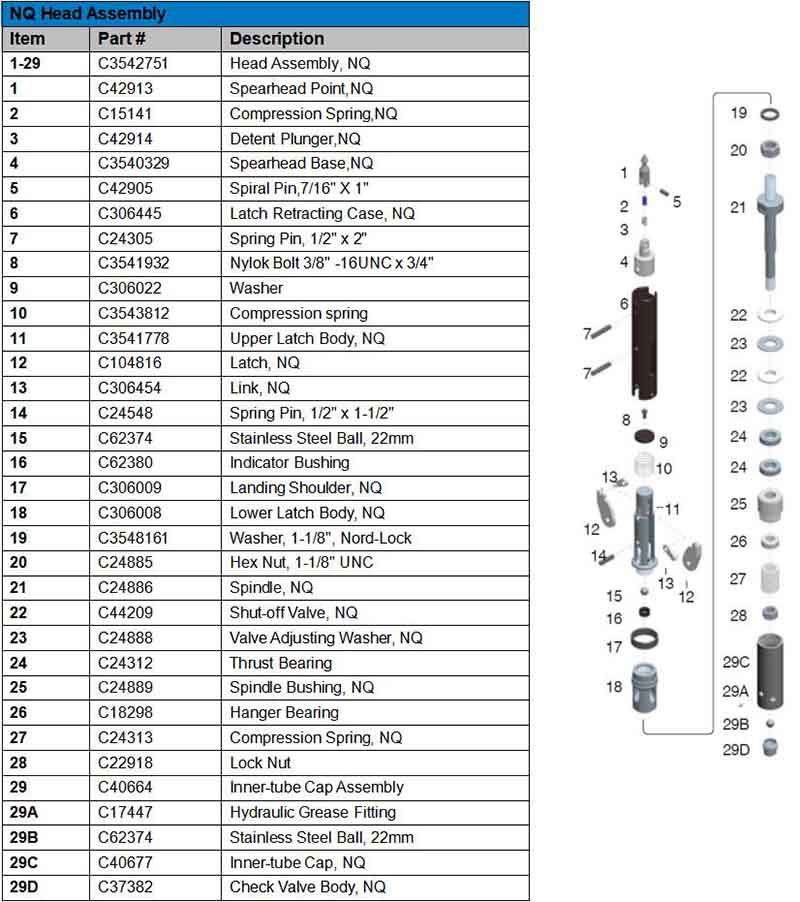

NQ head assembly pic.jpg


            *MKII NQ spearhead assembly is also available.
