PQ head assembly

PQ head assembly, PQ link latch head assembly, PQ double tube head assembly.

PQ head assembly is the main part of PQ core barrel. PQ head assembly is used together with PQ inner tube, PQ stop ring, PQ core lifter, PQ core lifter case. They compose the PQ inner tube assembly. When using the P size wireline drilling, we do not have to remove the entire P size drill string to get the core sample from the bottom of the hole. We just need to lift the PQ inner tube assembly. It is the great advantage compare to conventional drilling.

PQ Head Assembly

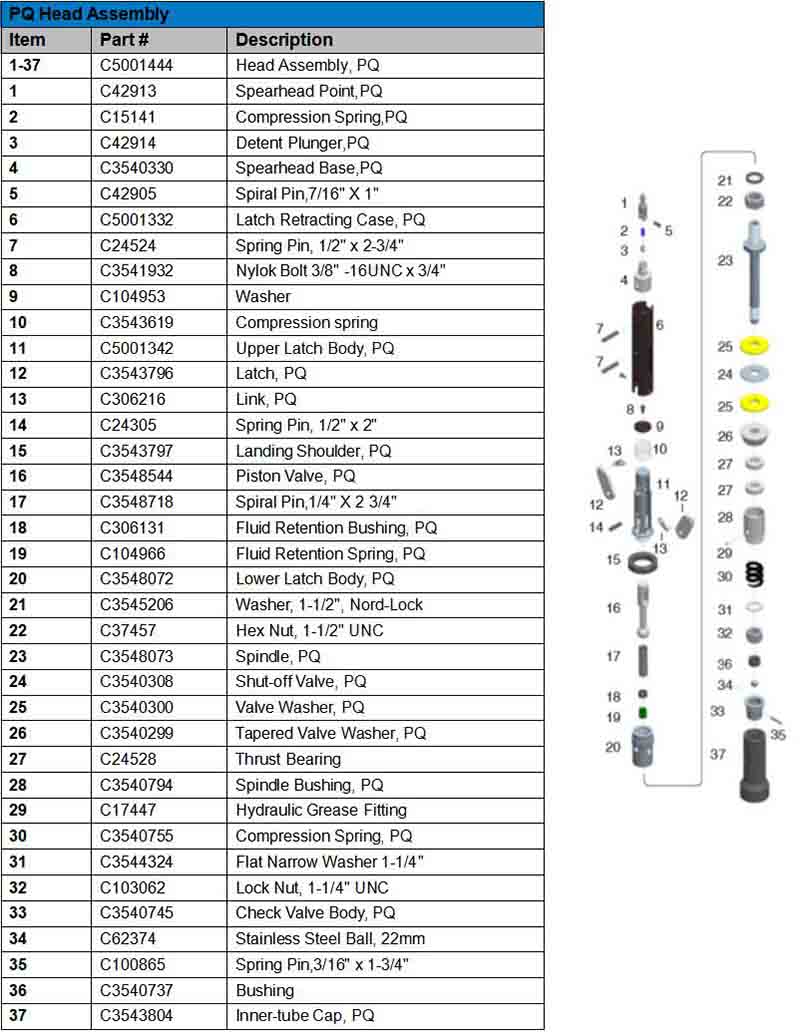

PQ head assembly pic.jpg


            *MKII PQ spearhead assembly is also available.
