BQ head assembly

BQ head assembly, BQ link latch head assembly, BQ double tube head assembly.

BQ head assembly is the main part of BQ core barrel. BQ head assembly is used together with BQ inner tube, BQ stop ring, BQ core lifter, BQ core lifter case. They compose the BQ inner tube assembly. When using the B size wireline drilling, we do not have to remove the entire B size drill string to get the core sample from the bottom of the hole. We just need to lift the BQ inner tube assembly. It is the great advantage compare to conventional drilling.

BQ Head Assembly

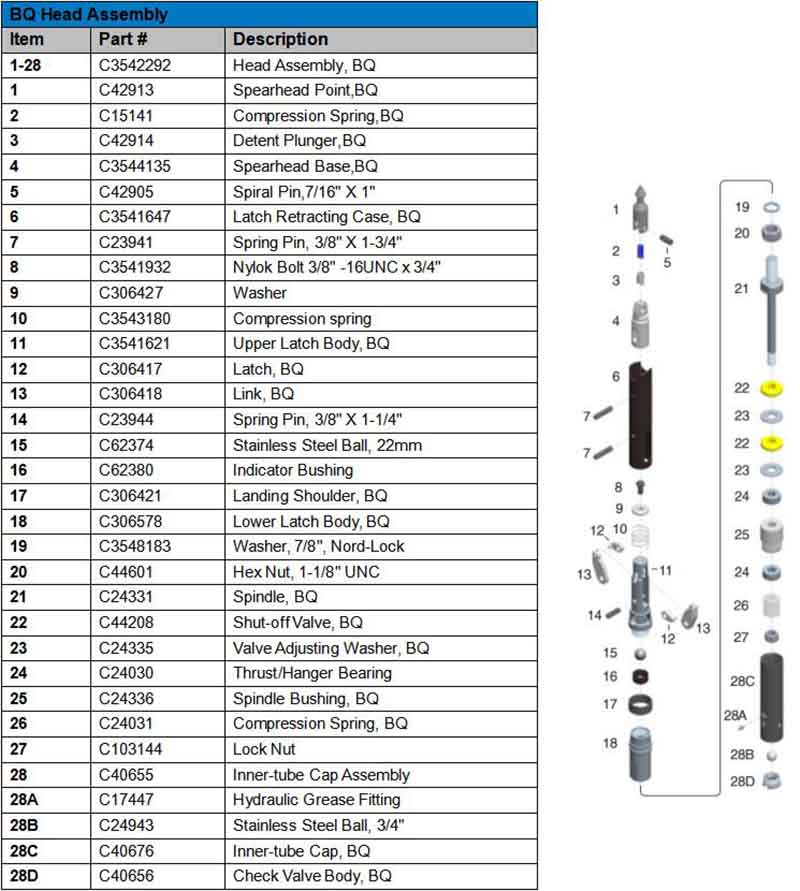

BQ head assembly pic.jpg


            *MKII BQ spearhead assembly is also available.
