adapter subs
adapter subs,BQ NQ HQ PQ BRQ NRQ HRQ PHD AW BW NW HW PW HWT PWT adapter subs.
Adapter subs are used to connect drill rods, core barrels, casings, bits, water swivels, hoisting plugs, recovery tools etc.
We offer adapter subs:water swivel adapter sub,hoisting plug adapter sub, bullnose adapter sub, casing adapter sub, recovery tool adapter sub,blank end adapter sub, drill rod adapter sub.

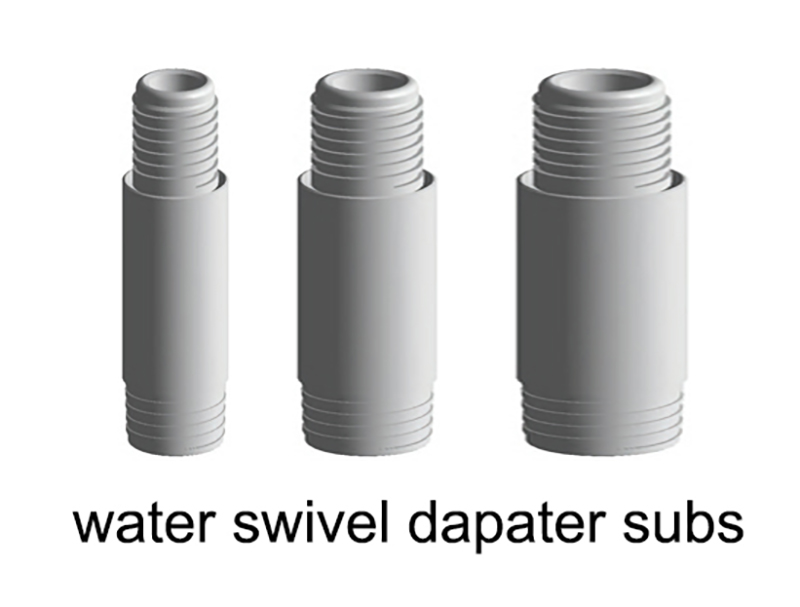

Water Swivel Adapter Overview:
Water Swivel Adapter Features:
● The rod pin threads are treated to ensure long life and minimize rod box thread galling, extending drill rod thread life and joint performance.
●Identification groove supplied on mistakable subs.
Water Swivel Adapter Offerrings:
Item | Part # | Description |
1 | C25615 | AW Rod Pin to BQ Rod Pin |
2 | C25617 | AW Rod Pin to NQ Rod Pin |
3 | C3540879 | AW Rod Pin to NRQ Rod Pin |
4 | C31093 | AW Rod Pin to HQ Rod Pin |
5 | C3541874 | AW Rod Pin to HRQ Rod Pin |
Item | Part # | Description |
1 | C30476 | BW Rod Pin to BQ Rod Pin |
2 | C27559 | BW Rod Pin to NQ Rod Pin |
3 | C44464 | BW Rod Pin to HQ Rod Pin |
4 | C306251 | BW Rod Pin to HRQ Rod Pin |
5 | C103008 | BW Rod Pin to PQ/PHD Rod Pin |
Item | Part # | Description |
1 | C3542934 | NW Rod Pin to BQ Rod Pin |
2 | C3542932 | NW Rod Pin to NQ Rod Pin |
3 | C3542884 | NW Rod Pin to NRQ Rod Pin |
4 | C3542933 | NW Rod Pin to HQ Rod Pin |
5 | C3542885 | NW Rod Pin to HRQ Rod Pin |
6 | C102912 | NW Rod Pin to PQ/PHD Rod Pin |

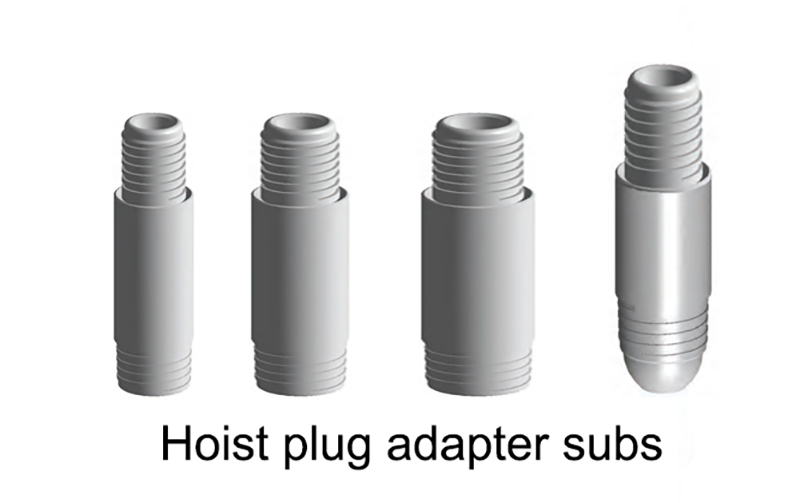

Hoist plug Adapter subs Overview:
Hoist plug Adapter Sub Features:
● The rod pin threads are treated to ensure long life and minimize rod box thread galling, extending drill rod thread life and joint performance.
●Identification groove supplied on mistakable subs.
●Optional bullnose type subs eliminate unwanted “stabbing” damage and thread has minimum “stand off” allowing it to be made-up fully by hand ensuring a full capacity connection.
Hoist Plug Adapter Sub offerings:
Item | Part # | Description |
1 | C25615 | AW Rod Pin to BQ Rod Pin |
2 | C25617 | AW Rod Pin to NQ Rod Pin |
3 | C3540879 | AW Rod Pin to NRQ Rod Pin |
Item | Part # | Description |
1 | C3542934 | NW Rod Pin to BQ Rod Pin |
2 | C3542932 | NW Rod Pin to NQ Rod Pin |
3 | C3542884 | NW Rod Pin to NRQ Rod Pin |
4 | C3542933 | NW Rod Pin to HQ Rod Pin |
5 | C3542885 | NW Rod Pin to HRQ Rod Pin |
6 | C102912 | NW Rod Pin to PQ/PHD Rod Pin |
Item | Part # | Description |
1 | C102912 | NW Rod Pin to PQ/PHD Rod Pin |
2 | C3544177 | NW Rod Pin to PWT Casing Pin |

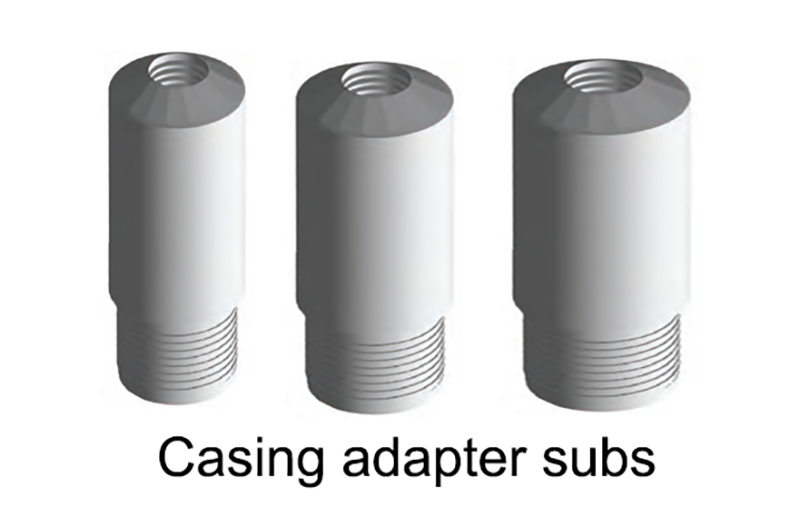

Casing Adapter Subs Overview:
Casing Adapter Sub Features:
● The rod pin threads are treated to ensure long life and minimize rod box thread galling, extending drill rod thread life and joint performance.
●Identification groove supplied on mistakable subs.
Casing Adapter Subs Offerings:
Item | Part # | Description |
1 | C30056 | BQ Rod Box to BW Casing Pin |
2 | C30558 | NQ Rod Box to BW Casing Pin |
3 | C3541876 | NRQ Rod Box to BW Casing Pin |
4 | C30040 | NQ Rod Box to NW Casing Pin |
5 | C306452 | NRQ Rod Box to NW Casing Pin |
6 | C30101 | NQ Rod Box to HW Casing Pin |
7 | C3541877 | NRQ Rod Box to NW Casing Pin |
8 | C103654 | NQ Rod Box to HWT Casing Pin |
9 | C306453 | NRQ Rod Box to HWT Casing Pin |
10 | C30555 | HQ Rod Box to NW Casing Pin |
11 | C3541878 | HRQ Rod Box to NW Casing Pin |
12 | C27558 | HQ Rod Box to HW Casing Pin |
13 | C3541879 | HRQ Rod Box to HW Casing Pin |
14 | C101341 | HQ Rod Box to HWT Casing Pin |
15 | C306255 | HRQ Rod Box to HWT Casing Pin |
16 | C3543992 | PQ/PHD Rod Box to PWT Casing Pin |
17 | C3541334 | PW Casing Box to PWT Casing Pin |
18 | C3541433 | PWT Casing Box to PW Casing Pin |

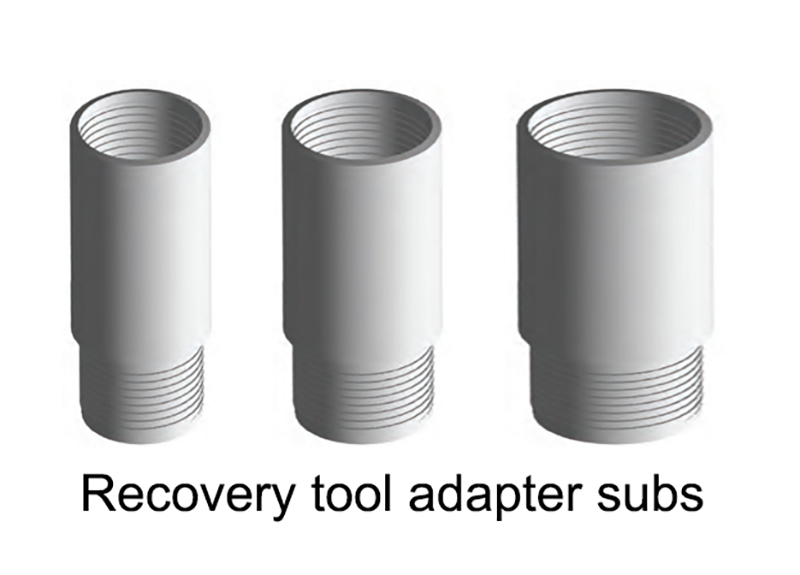

Recovery Tool Adapter Subs Overview:
Recovery Tool Adapter Sub Features:
● The rod pin threads are treated to ensure long life and minimize rod box thread galling, extending drill rod thread life and joint performance.
●Identification groove supplied on mistakable subs.
Recovery Tool Adapter Subs Offerings:
Item | Part # | Description |
1 | C24929 | BQ Rod Box to AW Rod Pin |
2 | C25485 | BQ Rod Box to BW Rod Pin |
3 | C24928 | NQ Rod Box to BW Rod Pin |
4 | C3541881 | NRQ Rod Box to BW Rod Pin |
5 | C24931 | NQ Rod Box to NW Rod Pin |
6 | C3542825 | NRQ Rod Box to NW Rod Pin |
7 | C25262 | HQ Rod Box to NW Rod Pin |
8 | C3541882 | HRQ Rod Box to NW Rod Pin |
9 | C3542319 | PQ/PHD Rod Box to NW Rod Pin |

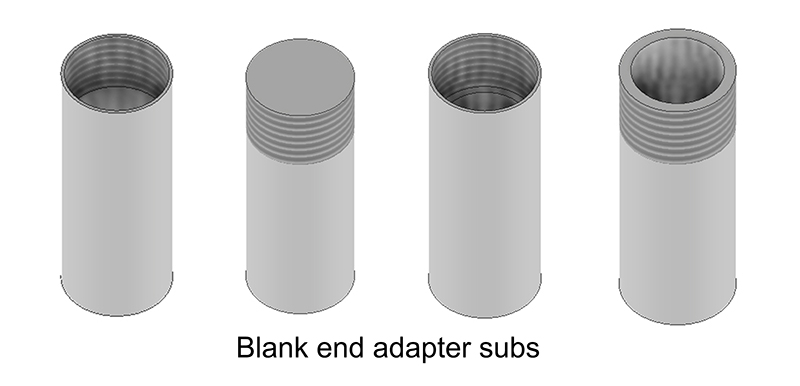

Blank End Adapter Subs Overview:
Blank End Adapter Sub Features:
Blank end adapter subs enable you to create adapter subs according to your unique
requirements. They are supplied as rod pin or rod box to either solid blank bar end or tubing blank end. Solid bar end subs are for use with hoist plugs and water swivels only. They are not for use as cross over subs. Thread stand off is adjusted for hand tight makeup. Identification groove supplied on mistakable accessories.
Blank End Adapter Subs Offerings:
Item | Part # | Description |
1 | C3540545 | BRQ Rod Box to Solid Blank |
2 | C40738 | BQ Rod Box to Solid Blank |
3 | C3540546 | BRQ Rod Pin to Solid Blank |
4 | C40742 | BQ Rod Pin to Solid Blank |
5 | C3543033 | BRQ Rod Box to Tubing Blank |
6 | C3543032 | BRQ Rod Pin to Tubing Blank |
7 | C306319 | NRQ Rod Box to Solid Blank |
8 | C40739 | NQ Rod Box to Solid Blank |
9 | C306318 | NRQ Rod Pin to Solid Blank |
10 | C40743 | NQ Rod Pin to Solid Blank |
11 | C3542997 | NRQ Rod Box to Tubing Blank |
12 | C3542996 | NRQ Rod Pin to Tubing Blank |
13 | C306321 | HRQ Rod Box to Solid Blank |
14 | C40740 | HQ Rod Box to Solid Blank |
15 | C306320 | HRQ Rod Pin to Solid Blank |
16 | C40744 | HQ Rod Pin to Solid Blank |
17 | C3543035 | HRQ Rod Box to Tubing Blank |
18 | C3543034 | HRQ Rod Pin to Tubing Blank |
19 | C103416 | PHD Rod Box to Solid Blank |
20 | C3545166 | PWT Casing Pin to Solid Blank |
21 | C103415 | PHD Rod Pin to Solid Blank |
22 | C3545167
| PWT Casing Pin to Solid Blank
|
23 | C102924 | PHD Rod Box to Tubing Blank |
24 | C103054 | PHD Rod Pin to Tubing Blank |

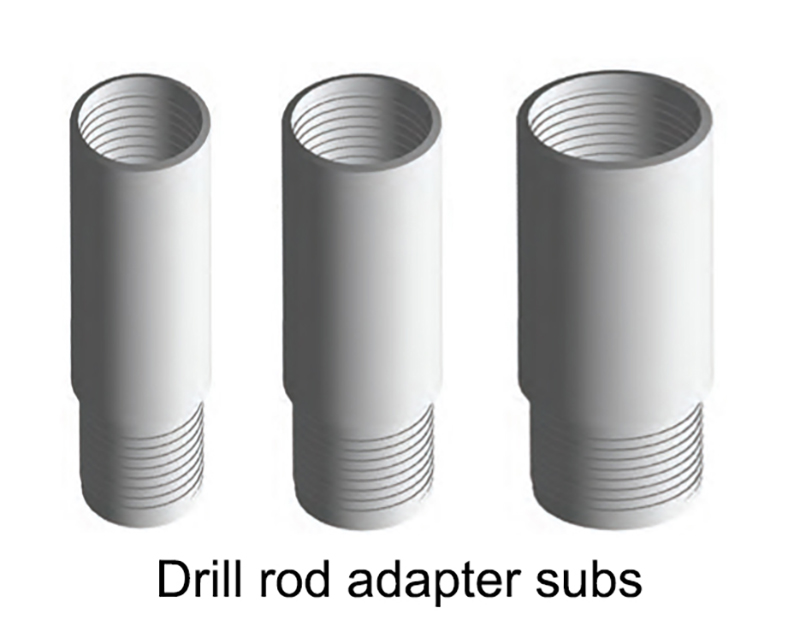

Drill Rod Adapter Subs Overview:
Drill Rod Adapter Sub Features:
● Used between Drill Rod to Drill Rod / Locking Coupling
●Identification groove supplied on mistakable subs.
Drill Rod Adapter Subs Offerings:
Item | Part # | Description |
1 | C306248 | BRQ Rod Box to BQ Rod Pin |
2 | C306249 | BQ Rod Box to BRQ Rod Pin |
Item | Part # | Description |
1 | C104743 | NRQ Rod Box to NQ Rod Pin |
2 | C104744 | NQ Rod Box to NRQ Rod Pin |
Item | Part # | Description |
1 | C306252 | HRQ Rod Box to HQ Rod Pin |
2 | C306253 | HQ Rod Box to HRQ Rod Pin |
Item | Part # | Description |
1 | C101366 | PHD Casing Box to PQ Rod Pin |
2 | C101367 | PQ Rod Box to PHD Pin |
