Water swivel is a part which provides a watertight or airtight rotating joint to connect the pump to the drill rod with a high pressure hose. Most water swivels can use with a variety of flushing mediums including water, air, foam, or bentonite drilling fluids.

Water Swivels are made of high-quality alloy steel and with replaceable V-ring packing style seal gland for standard drilling applications.

Water Swivel Features:

●Available in compact, standard duty, heavy duty and underground types with accordingly sized spindle porting and an NPT side fluid supply connection.

●Spring loaded, self-adjusting gland packings ensure reliable seal.

●Easily replaceable hardened packing wear sleeves protect the spindle from packing wear.

●Weep holes prevent any leakage past the packing from reaching the bearing, and also indicate packing condition to the operator.

●Protected grease fitting to allow easy lubrication of bearings. Lubrication path conducts

contaminants away from the bearing and relieves excess lubrication pressure.

●Easily disassembled with pipe wrenches, a screw driver, spanner wrench, and soft mallet, for easy packing or wear sleeve replacement.

●Suitable for use with water or drilling mud only. Packings and mating wear sleeves are subject to wear and generally operate with a small degree of leakage depending on rpm and vibration levels.

●Adapter Subs are available to adapt to BQ, NQ,HQ,PQ,BRQ,NRQ,HRQ,PHD drill rods.

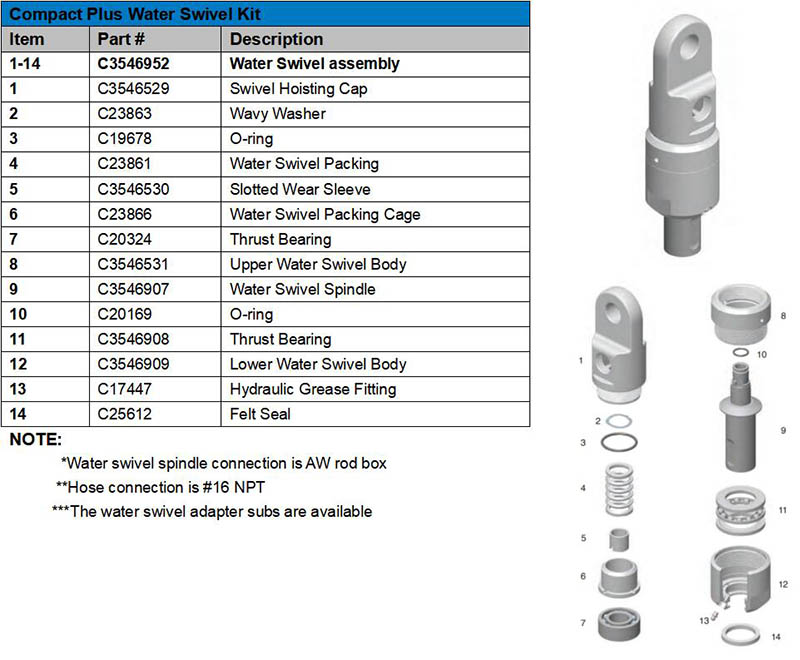

Compact Plus Water Swivel

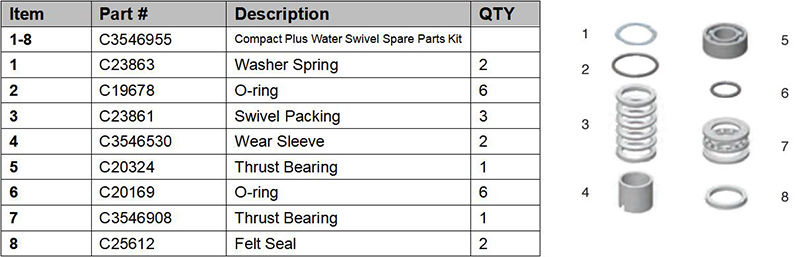

Compact Plus Water Swivel Spare Parts Kit

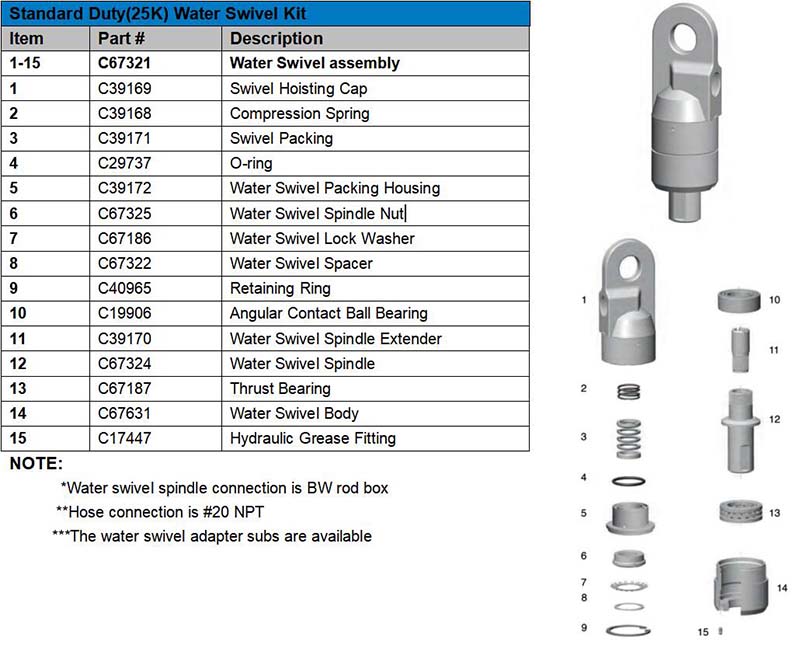

Standard Duty(25K) Water Swivel

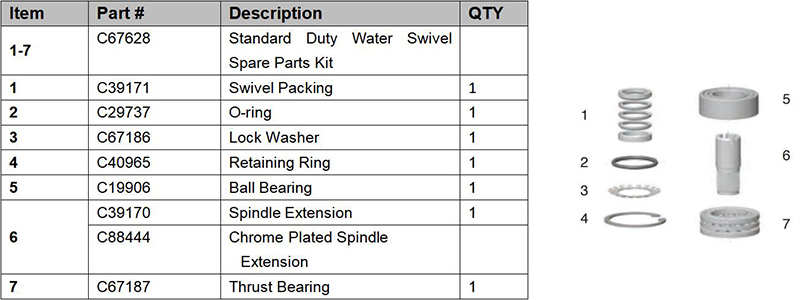

Standard Duty(25K) Water Swivel Spare Parts Kit

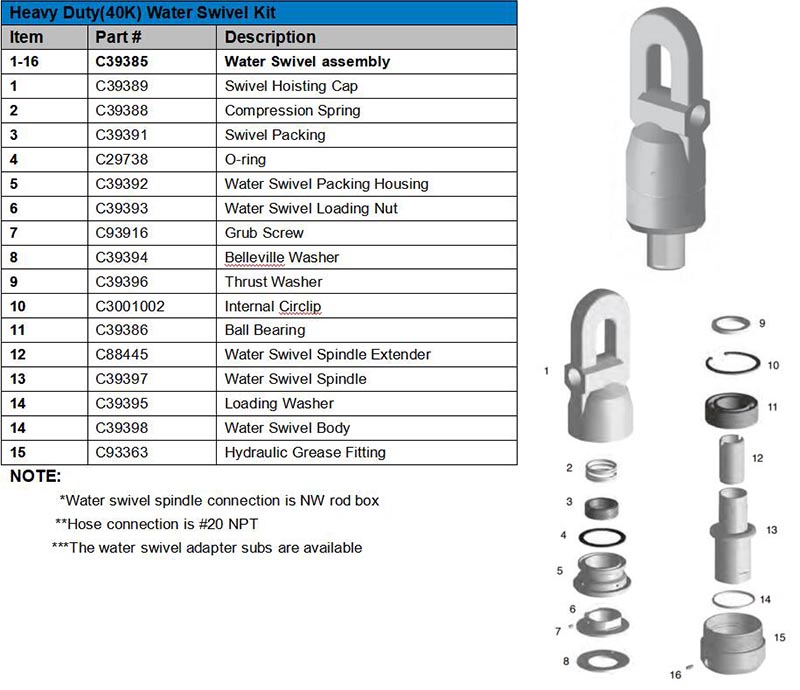

Heavy Duty(40K) Water Swivel

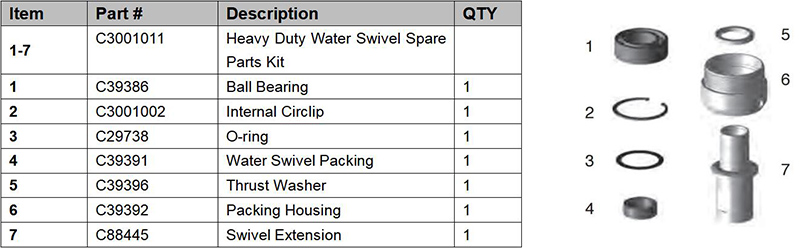

Heavy Duty(40K) Water Swivel Spare Parts Kit

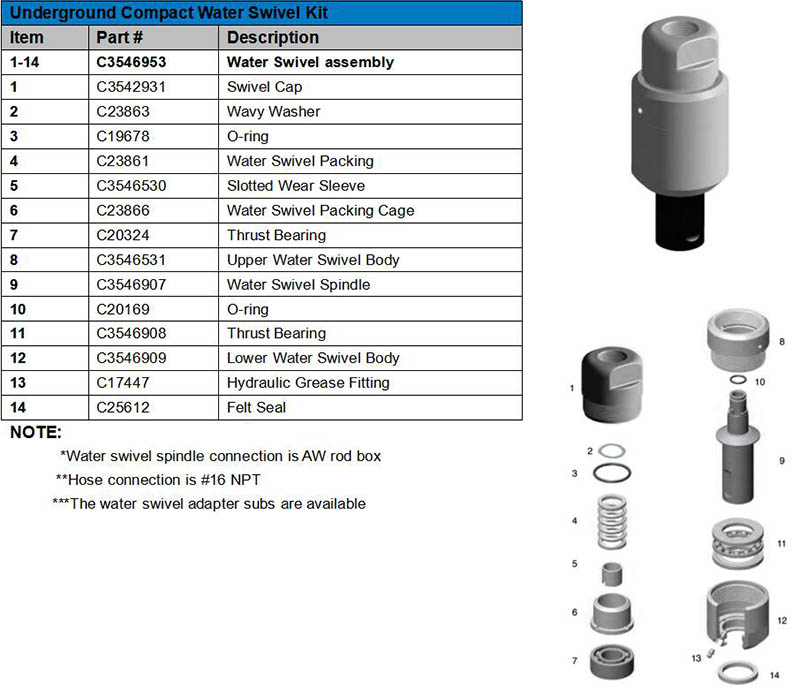

Underground Compact Water Swivel

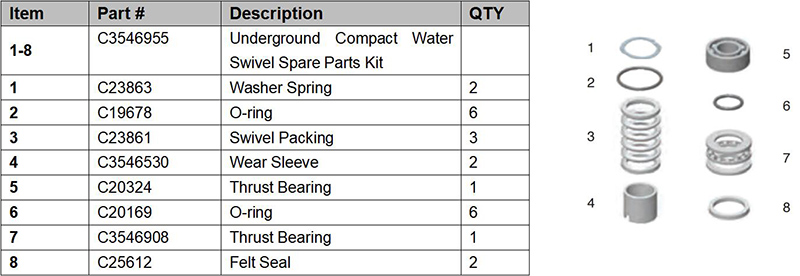

Underground Compact Water Swivel Spare Parts Kit
