BRQ drill rod

BRQ drill rod, BRQ wireline drill rod, BRQ coring rod.

BRQ wireline drill rod play an important in B size wireline drilling. It provides the channel for BQ inner tube assembly. It also transits the torque, drill pressure in complex and harsh conditions.

BRQ wireline drill rod tubing

●High quality alloy steel tubing

good concentricity, straightness and heat treatment

tubing properties meet the industry standard

BRQ wireline drill rod thread

Typical BRQ tapered, course threads (3 threads per inch) provides easy make and break

Load efficiency of 30% provides sufficient strength for most drilling conditions

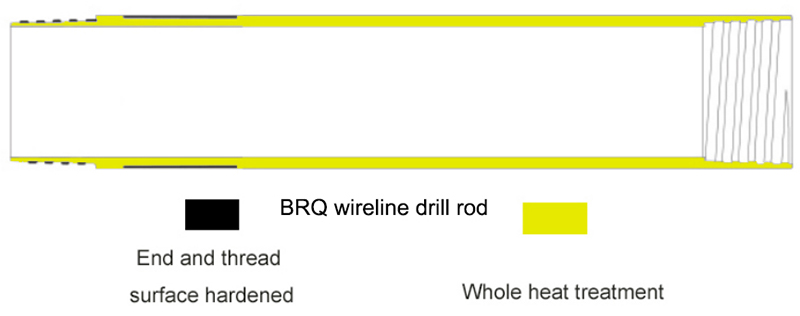

BRQ wireline drill rod heat treatment

Provides higher material strength

Whole rod Heat treated significantly increases rod life

BRQ wireline drill rod case hardening

BRQ Pin thread crest is hardened to nominal 50-55 HRC to eliminate damaging ‘adhesion wear

Eliminates the transfer of wear material back and forth as seen between threads of equal hardness, leading to large scale galling and joint seizing

BRQ wireline drill rod overview

BRQ drill rod overview.jpg

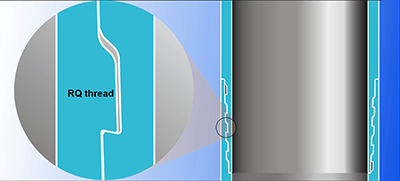

BRQ wireline drill rod thread profile

RQ thread.jpg


BRQ wireline drill rod parameters

SIZE

OUTER DIAMETER

(mm)

INNER DIAMETER

(mm)

WEIGHT

(kg/3m)

THREAD PITCH

(mm)

PIN LENGTH

(mm)

BRQ

55.6

46.1

18

8.5

41.91

BRQ wireline drill rods bundle specifications

3.0 m rod bundle (19 pcs)

Approx Dimensions (L x W x H)(mm)

3100 x 300 x 300

Approx Volume(m³)

0.30

Approx Gross Weight(kg)

355

BRQ wireline drill rods container shipments

20 ft container

Approx load of 3.0 m rods 53 bundles (1007 pcs)

40 ft container

Approx load of 3.0 m rods 68 bundles (1292 pcs)
