BQ wireline drill rod plays an important role in B size wireline drilling. It provides the channel for BQ inner tube assembly. It also transits the torque, drill pressure in complex and harsh conditions.

BQ wireline drill rod tubing

●High quality alloy steel tubing

●good concentricity, straightness and heat treatment

●tubing properties meet the industry standard

BQ wireline drill rod thread

●Typical BQ tapered, course threads (3 threads per inch) provides easy make and break

●Load efficiency of 30% provides sufficient strength for most drilling conditions

BQ wireline drill rod heat treatment

●Provides higher material strength

●Whole rod Heat treated significantly increases rod life

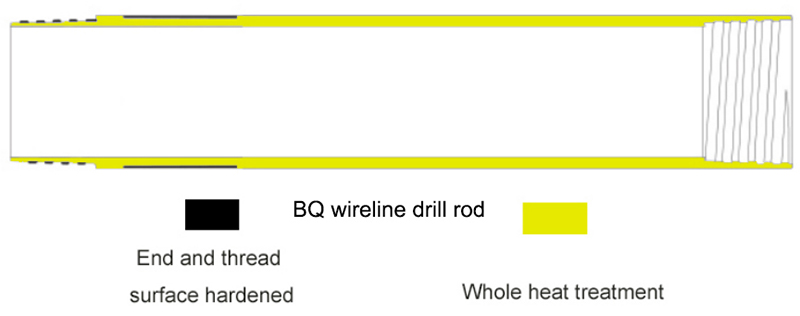

BQ wireline drill rod case hardening

●BQ Pin thread crest is hardened to nominal 50-55 HRC to eliminate damaging ‘adhesion’ wear

●Eliminates the transfer of wear material back and forth as seen between threads of equal hardness, leading to large scale galling and joint seizing

BQ wireline drill rod overview

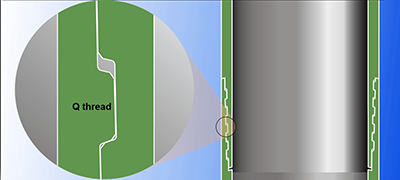

BQ wireline drill rod thread profile

BQ wireline drill rod parameters

BQ wireline drill rods bundle specifications

BQ wireline drill rods container shipments
